Korea East Dae Gu Station Project, 2013

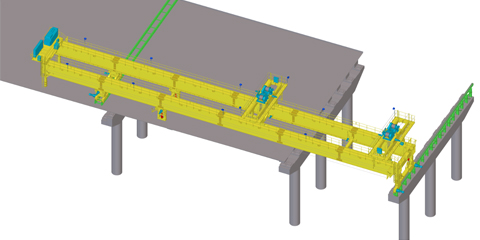

Beam Launcher

  • Equipment Supplied:Beam Launcher
  • Main Specifications:55m Span, 160Ton Capacity
  • Year:2013

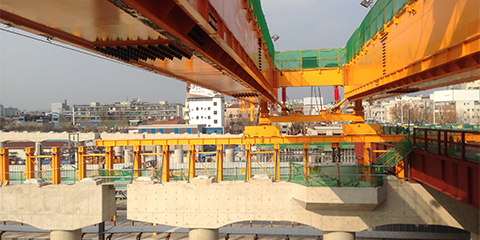

In year 2013, one set of Beam Launcher was supplied for using to dismantle the old bridge and reconstruction a new one on East Dae Gu Station in South Korea.

Capacity 2*80ton
Applicable Span
Min. applicable hor. radius
Max. Applicable Slope
Running Speed of Winch Trolley
Side-shift Speed of Winch Trolley
Lifting Speed
Full Load
Empty Load
Lifting Height
Overall Launching Speed
20-55m
2000m
3%(long.), 3% cross-fall
0-5.4m/min
0~2.2m/min

0~0.8m/min
0~1.6m/min
20m
4.3m/min
